CR Collapsible Reel

  • Image 1
Price:
$1,053.00
Weight:
73.00 LBS
Shipping:
Calculated at checkout
Quantity:


Product Description

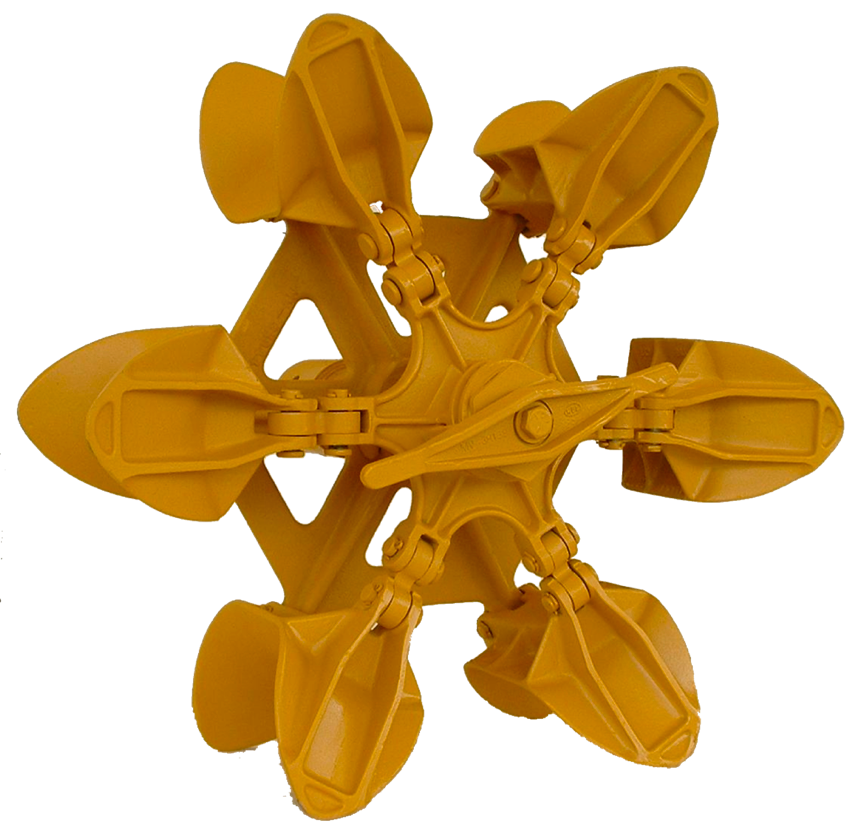

CR Collapsible Reel



The CR collapsible reel is designed for picking up wire in neat coils. The reel is simply pushed onto the winch shaft, compressing the spring and then turned to lock onto the shaft. After the wire is coiled onto the reel, a quick-acting handle is used to collapse the outer rim of the pick-up reel, allowing the coiled wire to be removed.



Maximum pulling force is 4,000 pounds. Capacity is 200 pounds of wire or cable.





Specifications

Drum Diameter

20"

Overall Diameter

28"

Throat (between flanges)

6"

Winch Shaft

2-7/16"

Weight

73 lbs.
