EK425L Gator® Battery Powered Crimping Tool

  • Image 1
  • Image 2
Price:
$1,699.00
Weight:
6.80 LBS
Shipping:
Calculated at checkout

Choose Your Options

Quantity:


Product Description

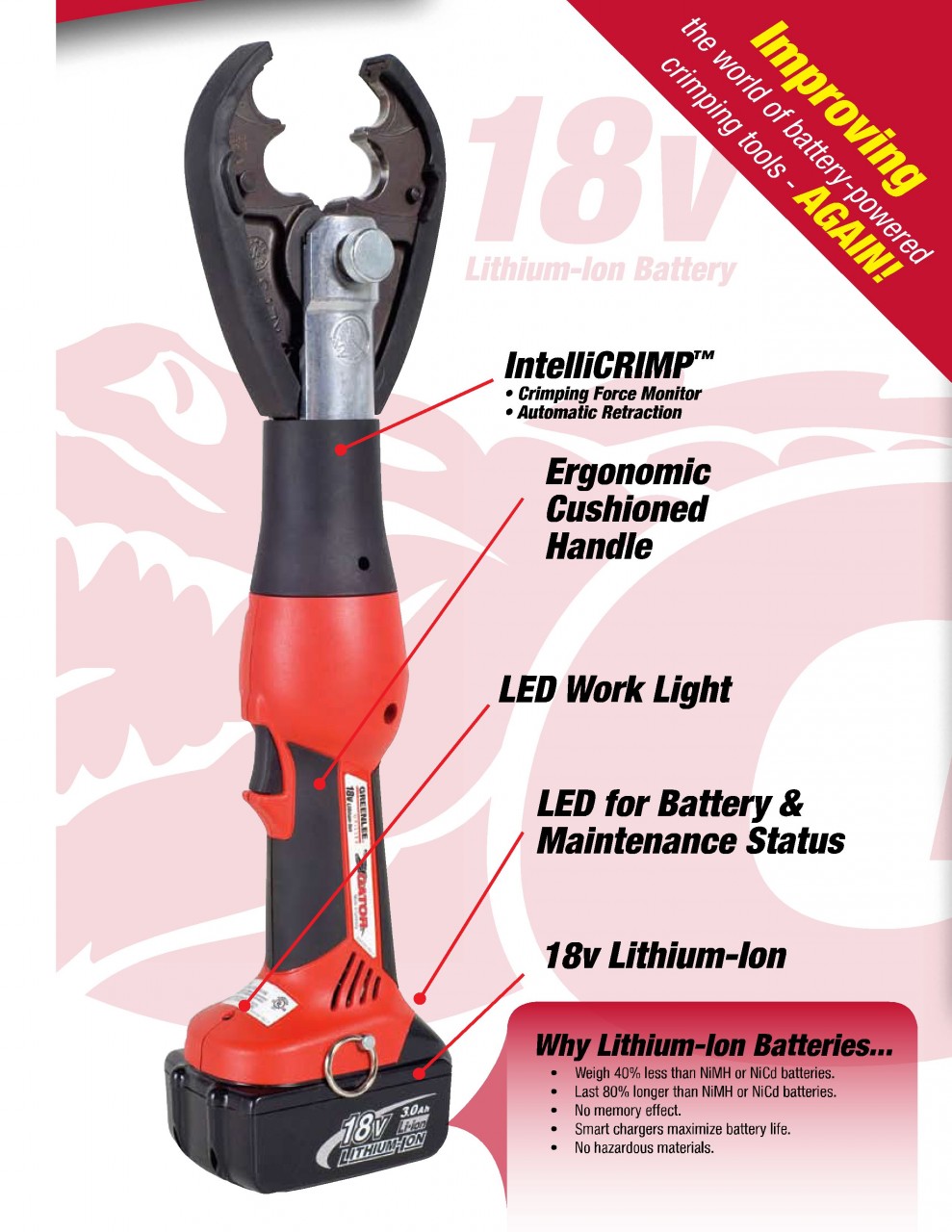

GREENLEE EK425L Gator®  Battery Powered Crimping Tool


With the new 6-ton Greenlee Utility EK425L tools, Greenlee has taken the best in class EK425 and packed it with additional exclusive features to make the crimping task faster and easier while providing assurance that each crimp is complete.

The EK425L is operated with one hand, leaving the other hand free to position the cable and connector. The crimping jaws open wide to fit easily over connectors.

To help prepare for a crimp, the jaws can be jogged closed until they just grip the connector, allowing the operator to position the cable in the connector before finishing the crimp.  The EK425L will complete about 325 crimps per battery charge on 4/0 AWG splices.

When a crimp is fully completed, the EK425L signals the operator by automatically opening the jaws.  It is then ready to make the next crimp.  When the crimping jaws need to be opened before a crimp is complete, the operator can simply push a button on the back side of the tool.



More Power

  • 18V Lithium-Ion battery provides 20% shorter cycle times (4 sec.) and 80% more cycles per charge (up to 325)
  • 6 tons of crimping force

More Intelligent

  • An exclusive pressure sensor monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications
  • LED light provides the operator with the battery charge status and tool maintenance status
  • Smart chargers maximize battery life

More Ergonomic

  • One trigger controls all tool functions, ram automatically retracts when crimp is complete
  • Over molded tacky grip areas make gripping the tool easier and more comfortable
  • LED work light illuminates dark work areas

Other Features

  • Length is only 18 1/2", weighs only 6.8 lbs.
  • Includes two batteries, battery charger, and a convenient rubberized canvas bucket pouch
  • CJD3BG, CJD3O, CJK, & CJD3 crimping jaws have rubber covers on outside edges
  • When equipped with CJD3BG, CJD3O, CJK, & CJD3 crimping jaws, can be used with all industry "W" style crimping dies
  • When equipped with CJK crimping jaws, can be used with Kearney type "O" dies

GREENLEE EK425L Gator Battery Powered Crimping Tool; available at www.utilityparts.com
